Smart 3MP Mini Digital Peephole Door Camera 2.4Ghz WiFi Infrared IR Night Vision PIR Motion Detection Digital Viewer iCam365 APP

Support ONLY 2.4Ghz Wi-Fi to connect to APP.5Ghz Wi-Fi Not Supported!

– User normal 5V 1A/2A power adapter to FULLY charge your doorbell before installation (PD fast charger ADAPTER PROHIBITED)

– Plug the cable between monitor and camera well FIRST, then turn on monitor to add to “iCam365” APP.

– The PIR detected, the monitor will not AUTO-ON. Only press monitor home button to make it on.

– “NO DOORBELL BUTTON” on door camera part. Only can hear what the people talking at the door via APP; But the people at the door can not hear what you are talking via APP.
THE DOOR CAMERA PART HAVE Microphone, No Speaker.

SOHO Security Store iCam365 MINI Peephole Camera:

– 3MP resolution + Type-C charging port
– Wide View Angle:Diagonal 140 °;Horizontal 122 °;Vertical: 92°
– Built-in 5000mAh rechargeable Battery
– 3 meters charging cable included to charge doorbell easily.(PD fast charger ADAPTER PROHIBITED)
– Support One-Way Talk; Only can hear what the door person talking via APP
– Monitor will NOT AUTO-ON when PIR triggered

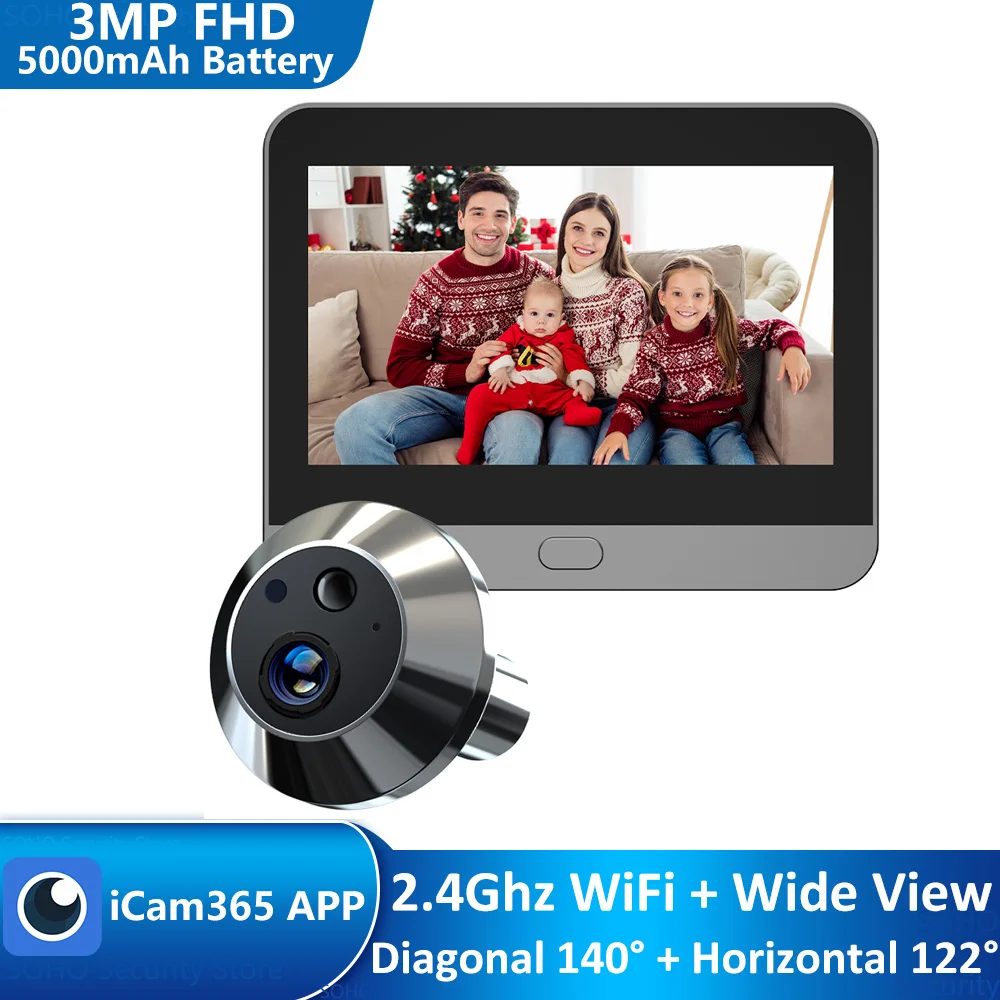

【3MP Smart 4.3″ LCD Digital Peephole Door viewer Camera】

It can connect to WiFi router wirelessly. You can monitor (handheld including smartphones, Android tablets) and one intercom with noise reduction (view visitors, snapshots, recordings, etc.). The system function menu is located in the mobile APP console instead of the indoor display. (The device is widely used in homes, apartments, villas, hotels or offices, etc.).At the same time the large 4.3″ LCD screen enables you or your family to see out the door clearly and sharply.

【PIR detection and 140° Wide View Angle】

Using 3MP camera Wide View Angle:Diagonal 140 °;Horizontal 122 °;Vertical: 92°, Easily Maximize Your Home Security with a Clear View of Your Doorway.Automatic switching of day/night vision sensitivity (adjustable; distance is about 3-4 meters), TFT color LCD display, suitable for AHD images and videos. Motion detection (PIR motion sensor can automatically detect body movement and trigger push messages and videos (stored to TFT card or mobile phone) within seconds, keeping your home safe 24 hours a day.

【One-way intercom brings convenience】

When someone at the doorbell, it will trigger pir and you app get notifications and you can check the live view and check who at the door and hear what the visitor say. But visitor can not hear what you say. Because door camera is so mini, that can not install the speaker.

【Long-lasting battery and app control】

Built-in 5000 mAh rechargeable large capacity battery supports 1-2 months long standby (usually 3-5 calls per day), low battery reminder and USB port charging. This digital door viewer supports both iOS and Android, download the “iCam365” App to receive every detail of what happens every day at your front door anytime, anywhere. Never miss a visitor or prevent theft, strangers or voyeurs.

【TF Card for Locol & Event Recording and Cloud Storage】

Support Max. 128G TF Card for local or event recording. Cloud storage need subsription.

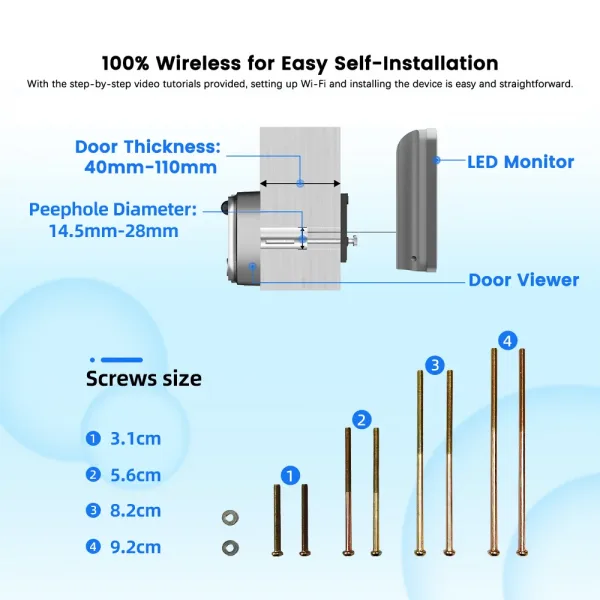

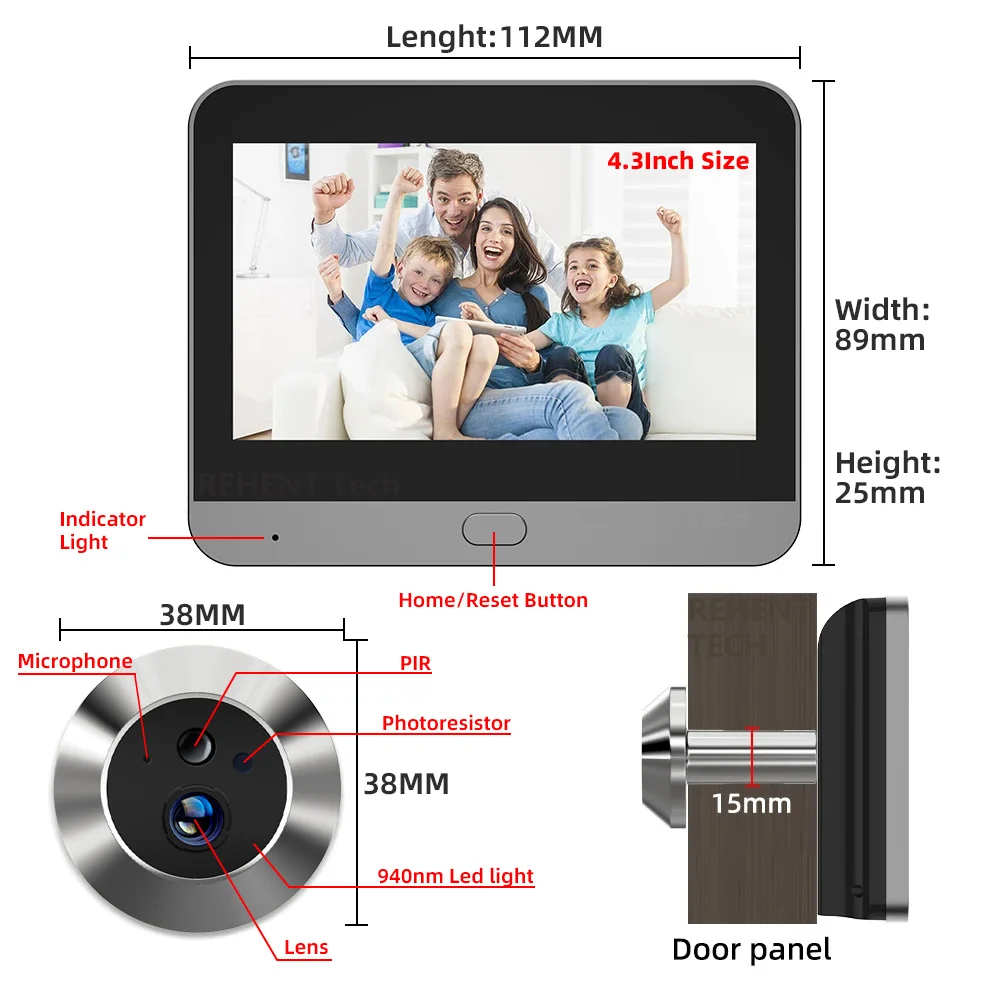

Peephole Diameter and Door Thickness Requirements & Real Picture & Package

Please note that the installation requires a hole through which you can connect the camera to the screen.

Package Accessory:
– Doorbell Camera
– Back Plate
– Screws Bags
– USB-C Charging Cable with 3Meters(10ft) length
– User Manual

iCam365 4.3 Inch Peephole Door Camera Q&A

1: What’s the battery capacity of this digital viewer? Working Time?

– It is built-in 5000mAh Lithium rechargeable battery doorbell camera
– Works 1-2 months based on 10 movements triggered per day

2: 3MP Digital Viewer working APP Name is?

– It is use ” iCam365″ APP. You can download from APP Store.

3: Do you have to have an existing peep hole to use this product?

– No… I wouldn’t think so. But, you will probably have to create a hole in the door for the camera if you don’t already have an existing peephole to replace.

4: What the view angle of digital viewer? Support Night Vision?

– Support 140° wide view angle
– Support 3MP 1080P Clear night vision with distance 5-8 meters

5: When i connect the door camera to monitor, but monitor can not show video? How to solve it?

– Make sure the door camera cable connect to monitor in the right direction
– Also push hard to make it connect well.

6: Can you turn off the monitor via press the monitor button?

– It is NOT support press doorbell button to turn off the monitor. The monitor will TURN OFF AUTO after 10 Seconds.
– Monitor will not AUTO-ON when PIR detected.
